6 Axis Industrial Welding Robot Arm
6 Axis Industrial Welding Robot Arm
6 Axis Industrial Welding Robot Arm
6 Axis Industrial Welding Robot Arm
6 Axis Industrial Welding Robot Arm
6 Axis Industrial Welding Robot Arm

6 Axis Industrial Welding Robot Arm

  •
    Price Range: $1,000.00 - $30,000.00 / Set
  •
    MOQ: 1 Set/Sets (Min. Order)
  •
    Model Number:
    All Options
    QJRH4-1A
    QJR6S-1
    QJR6-1
    QJR6-2
    QJR6-3
    QJR10-1
    QJR10-2
    QJRB20-1
  •
    Lead Time:
    Quantity(Sets) 1 - 100 101 - 200 >200
    Estimated Time(Days) 30 40 Negotiable
  •
    Core strengths:

    1. 20 years manufacturer & trading company with powerful strength.
    2. One stop solution provider.
    3. OEM&ODM services are available.
    4. Flexible payment terms:T/T,Cash,Western Union,L/C,etc.

    All Core Strengths
Product Description



Zhengzhou Yueda Technology Equipment Co., LtdZhengzhou Yueda Technology Equipment Co., Ltd

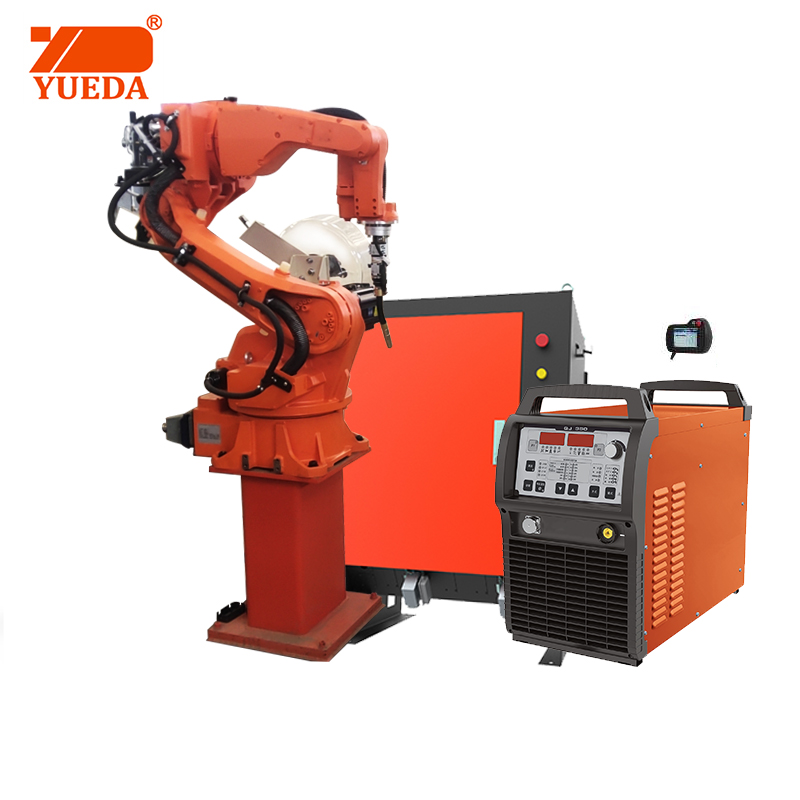

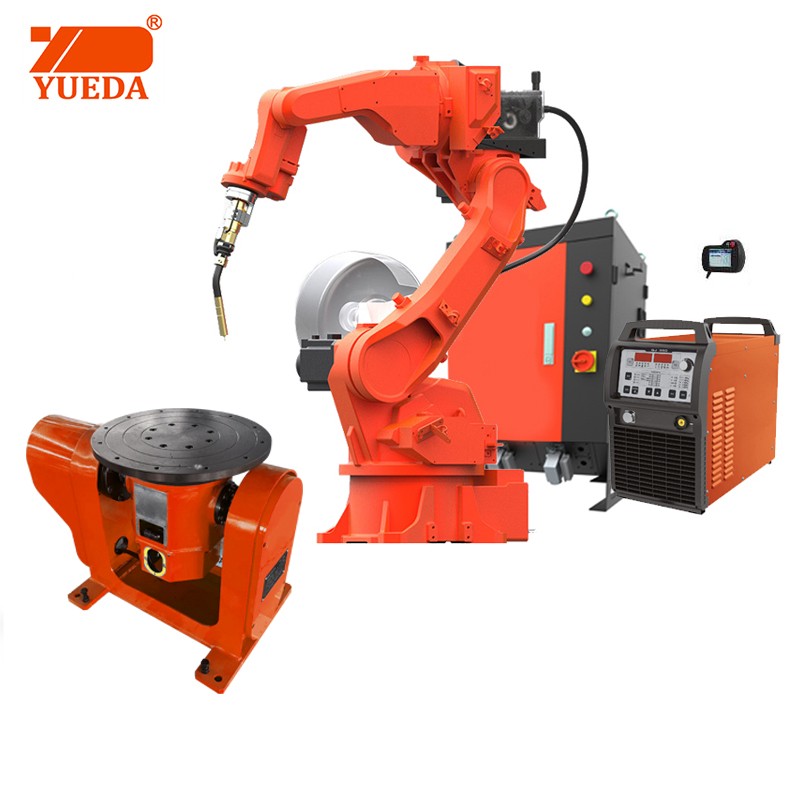

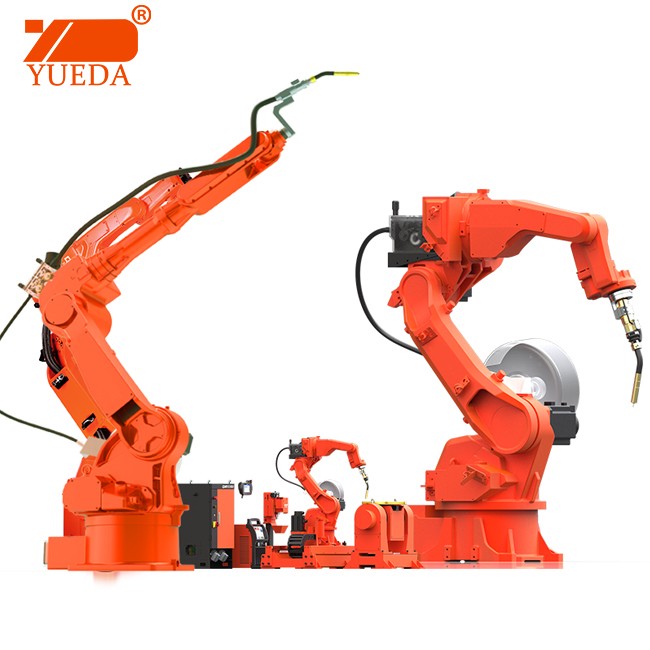

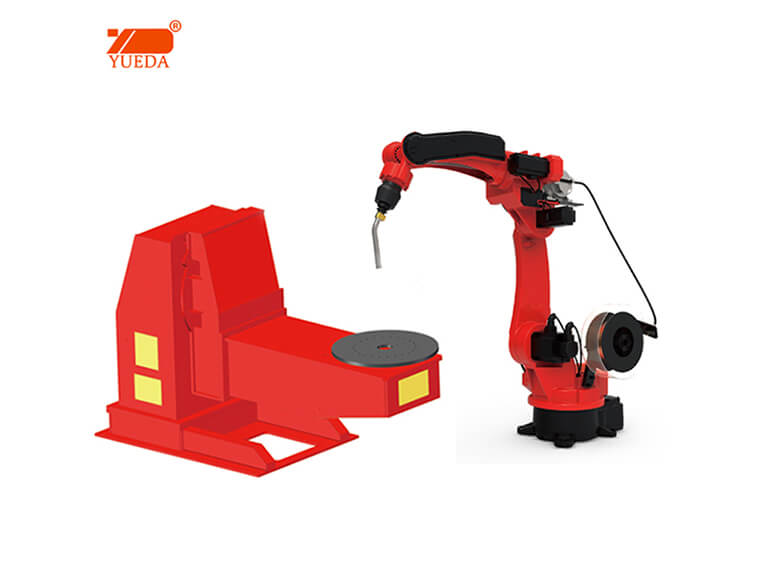

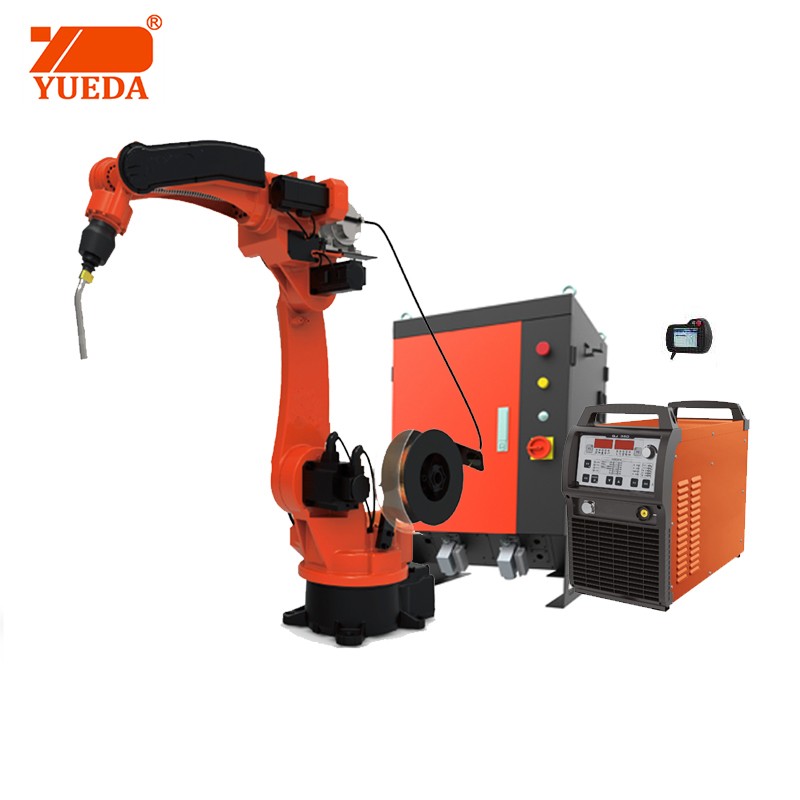

Product description of 6 Axis Industrial Welding Robot Arm:

6 axis welding robot arm with load capacity from 4kg to 20kg, effective arm length from 750mm to 2001mm.
We offer Chinese brand welding robot or international famous brand welding robot like Fanuc,Kuka,Panasonic,etc.
The welding robot equiped with MIG or TIG wedling power source and welding torches, suitable for welding carbon steel, stainless steel or Aluminium Alloy.
Fixed type or travel type  6 axis welding robots are ready for you, welcome your inquiry and visit!

Main Features of 6 Axis Industrial Welding Robot Arm:
Robot type: 6 axis industrial robot;
Usage: Mainly for Welding(Also can be used for handling and cutting);
Effective arm length: 750mm, 1410mm, 1456mm,1671mm, 2001mm,2014mm,etc;
Welding mode: MIG, TIG, etc;
Welding current: 350A, 400A, 500A, etc;
Control mode: electric control cabinet with teach pendant(teaching box);
Welding accuracy: ±0.03mm; ±0.05mm;
Motor type: high precision servo motor;
Reducer type: high precision reducer;
Input voltage: 3 phase 380v/50hz or customized.

Welcome your inquiry, high quality good price welding robot is ready for you!






Parameter
6 Axis Industrial Welding Robot Arm Main Parameters
Model Rated load Effective arm length Robot type Repeated positioning accuracy Power capacity Robot weight
QJRH4-1A 4KG 1410mm  6 axis robot mainly for welding  ±0.03mm 2.7KVA 150kg
QJR6-1400H 6KG 1456mm 6 axis robot mainly for welding  ±0.08mm

2.6KVA

150kg
QJR6S-1 6KG 750.6mm  6 axis robot mainly for sorting and handling ±0.02mm 1.5KVA 39kg
QJR6-1 6KG 1441mm  6 axis robot mainly for welding and handling  ±0.03mm 2.7KVA 170kg
QJR6-2 6KG 1481mm  6 axis robot mainly for sorting and handling ±0.03mm 2.7KVA 185kg
QJR6-3 6KG 2001mm  6 axis robot mainly for coating and handling ±0.05mm 3.8KVA 255kg
QJR6-2000H 6KG 2014mm  6 axis robot mainly for welding  ±0.08mm 3.4KVA 230kg
QJR10-1 10KG 1671mm  6 axis robot mainly for sorting and handling ±0.05mm 3.3KVA 250kg
QJR10-2 10KG 2001mm  6 axis robot mainly for sorting and handling ±0.05mm 4.2KVA 275kg
QJRB20-1 20KG 1671mm  6 axis robot mainly for sorting and handling ±0.05mm 3.6KVA 270kg



Inquiry

Welcome your inquiry, welcome to visit us. One stop solution is ready for you!
